ANSI B16.11 Fittings
ASME B16.11 Standard Scope
This standard contains pressure-temperature ratings, dimensions, tolerances, markings and material requirements for forged and threaded forged fittings. The relevant contents will be shown in below tables in this article.
Although the use of the material is based on the application it is to cater to. For instance, if an application requires good tensile strength in addition to hardness and toughness, while corrosion resistance is not considered to be an important property, Carbon Steel Socket Weld Fitting are preferred. This is because these fitting are inexpensive and are easily available. Industries that make use of the Socket Weld Pipe Fitting include Chemical Industries, Machines and equipment, Power stations, Water treatment systems, Sanitary tubing, Heat Exchangers, Oil and gas transmissions as well as petroleum and Oil refining.
Fitting Types and configuration
The types of pipe fittings (differentiated by grade and specification) included in this standard is shown as below:

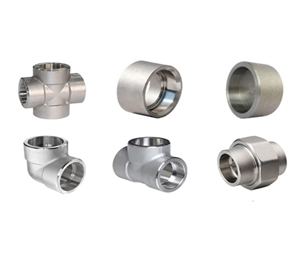

Socket Welding Fittings
Threaded Fittings

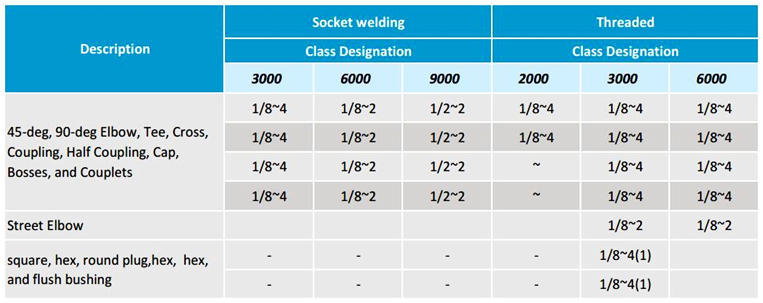

Socket weld fittings and Threaded fittings size in NPS inch. For example the 45 and 90 degree elbow, its size range is 1/2” to 4”, and the classes of the product are ranging in 3000, 6000 and 9000 lbs.
Notes: Plug and bushings are not identified by class designation. They may be used for ratings up to Class 600 designation.
Pipe Fittings Dimensions
ASME B16.11 Pressure Rating
Product Description | Pressure Class (#) | |||
Class 2000 Fitting | Class 3000 Fitting | Class 6000 Fitting | ||
ASME B16.11 Elbow | 1/2 - 4" | 1/2 - 2" | 1/2 - 2" | |
1/2 - 4" | 1/2 - 2" | 1/2 - 2" | ||
1/2 - 4" | 1/2 - 2" | 1/2 - 2" | ||
Wall Thickness Of Steel Pipe | 80 Sch | 160 Sch | XXS | |
ASME B16.11 Pressure Rating

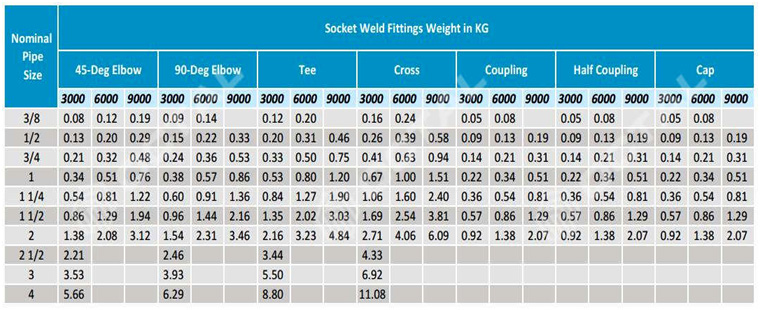

Socket Weld Fittings Weight in KG

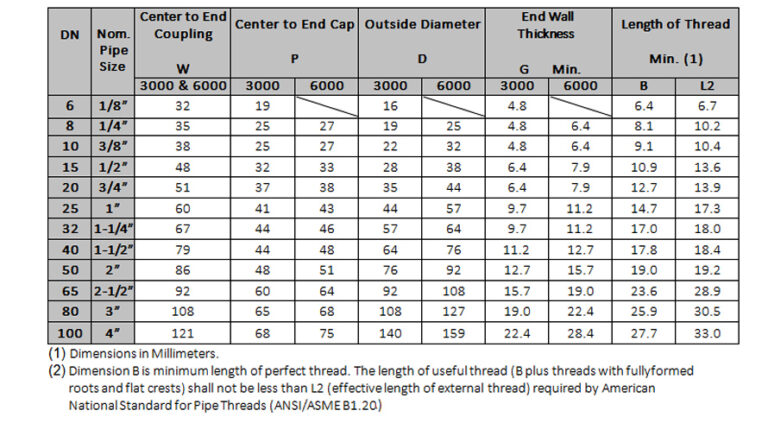

Threaded Fittings Weight in KG
Forged Socket Weld Fittings Specification
Specification | ASME B16.11 Fittings |
Dimensions Class | 2000#, 3000#, 6000#, 9000# |
Pressure | Check Pressure Rating Of Socket, Threaded: 3000 LBS, 6000 LBS, 9000 LBS |
Size Chart Of | 1/8” NB to 4” NB (Screwed-Socket) |
Standard Of | JISB2311, IS 2062, DIN, ANSI B16.28, ASME B16.9, BS10, ASME B16.47, ASME B16.38, MSS-SP-43, JISB2313, ASME B16.25, MSS SP-75, DIN2605, JISB2312, PN, AWWA C207, BS4504, BS1560, BS, GB, ISO |
ASME B16.11 Fittings Connection Type | Welding |
Forged Type | NPT (Threaded), BSPT, BSPP |
Forged Threaded Fittings Specifications
Specification | ASME B16.11 Fittings |
Manufacturer Types | Elbow (45 Deg/ 90 Deg) |
Method Types | Threaded (NPT) |
Type Of Standards | Bs3799 |
Manufacturer Size | SW Fitting = ½” Inch To 8” Inch< |
Pressure Class | SW Fitting = Class 3000/ Class 6000/ Class 9000 |
Test Certificates | EN 10204/3.1B |
Production Technique | Forged/ Heat treated and machined |
Application | Power/ gas/ petroleum/ chemical/ metallurgy/ shipbuilding etc. |

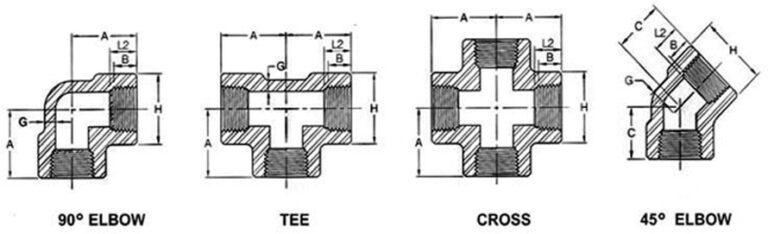

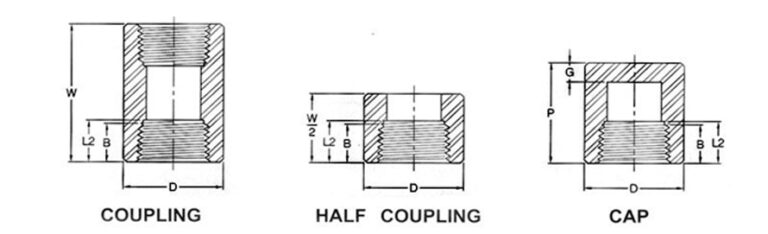

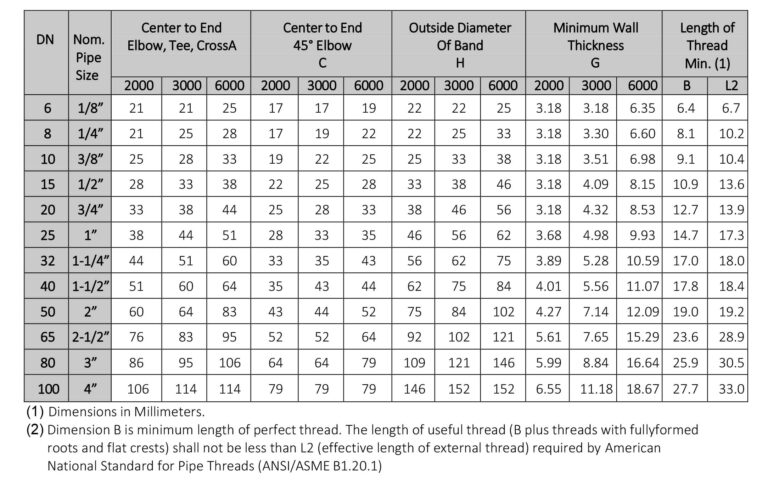

ASME B16.11 Threaded Fittings
